RAWRR

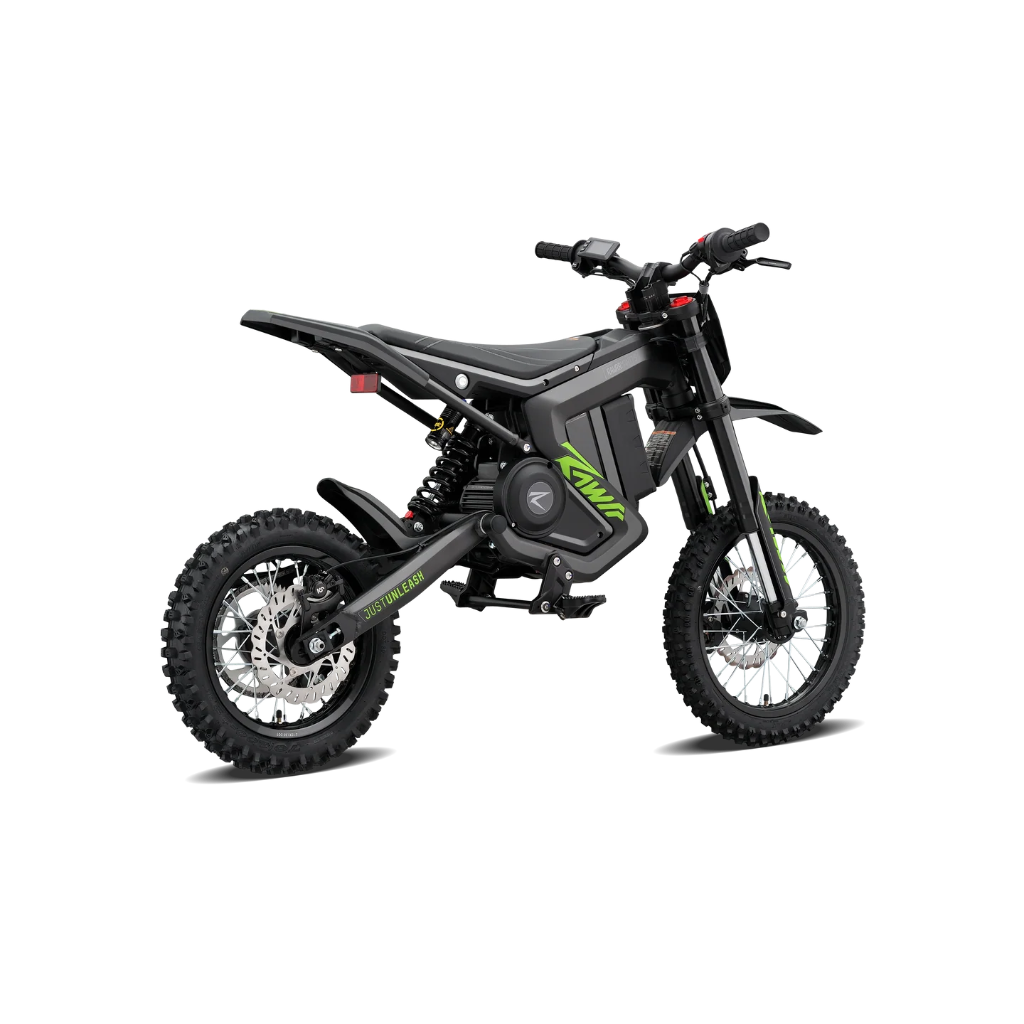

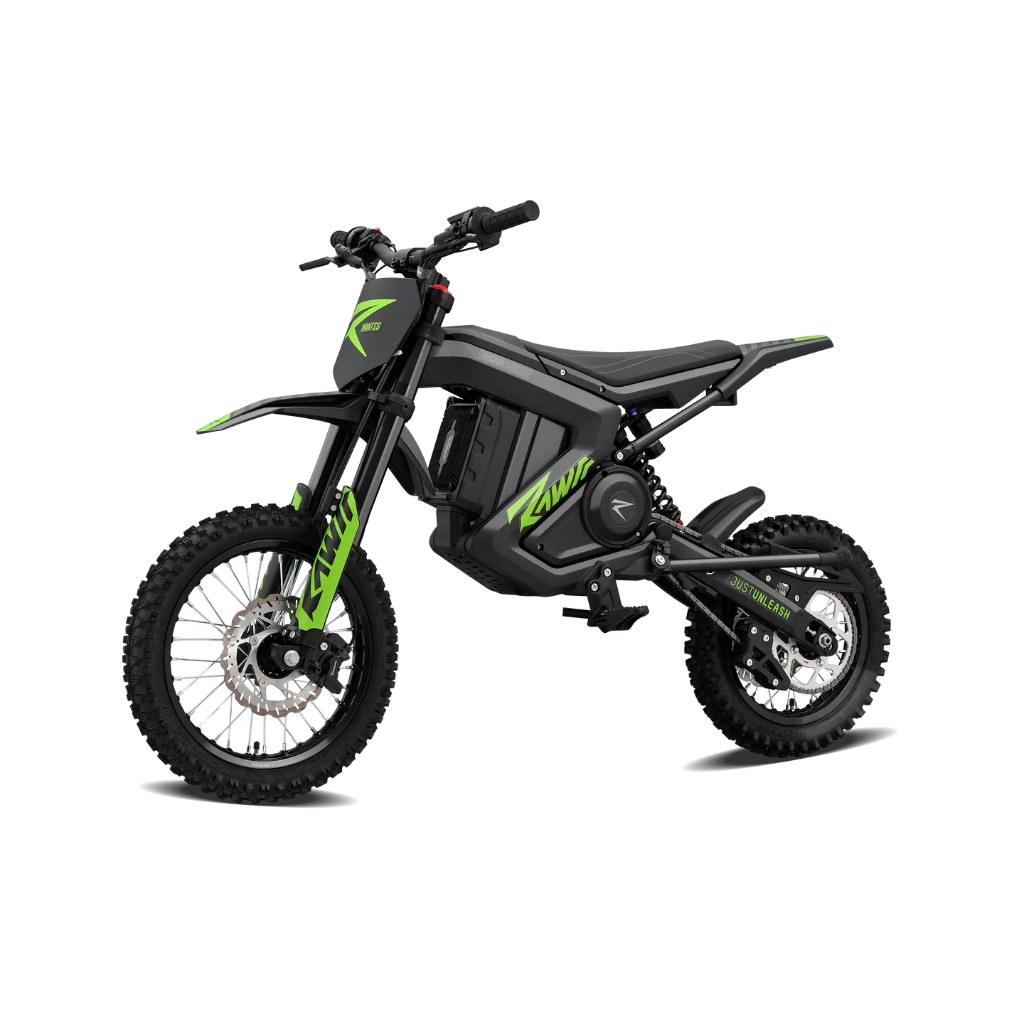

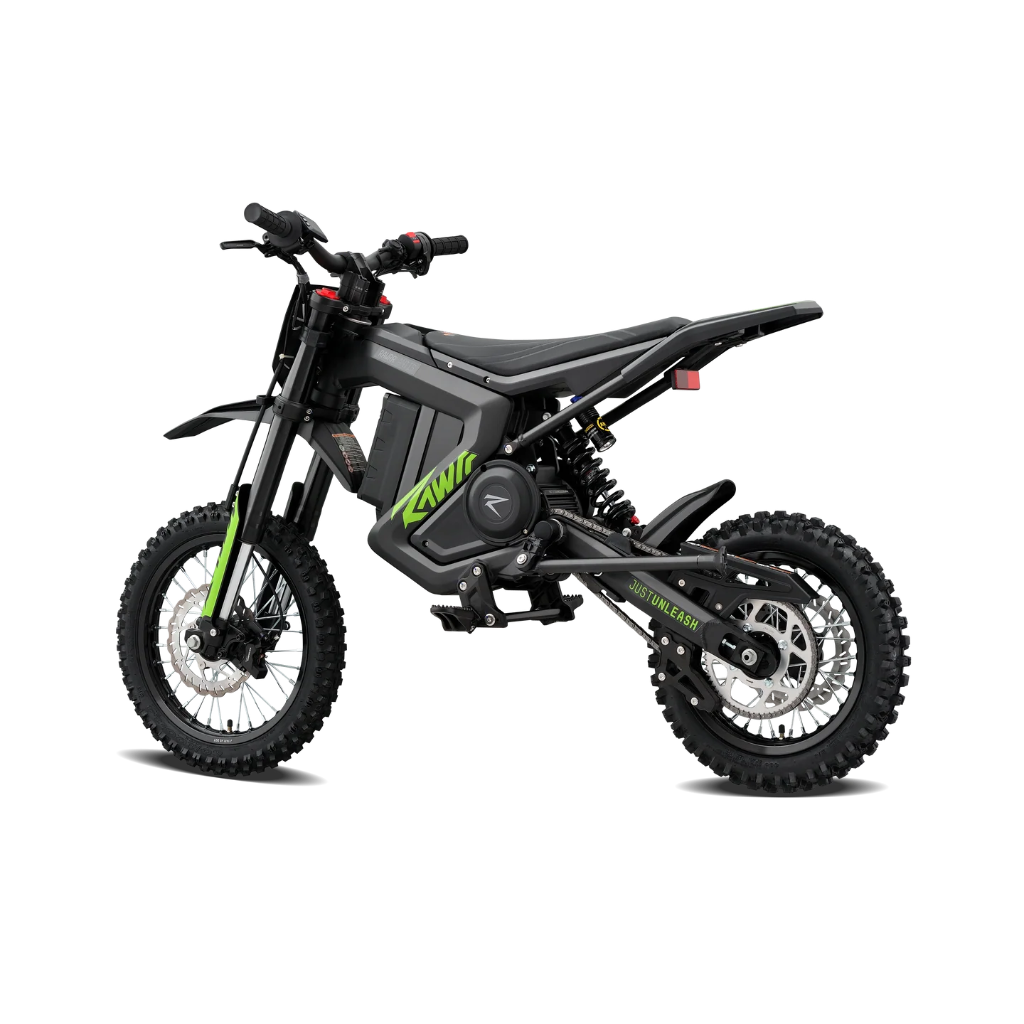

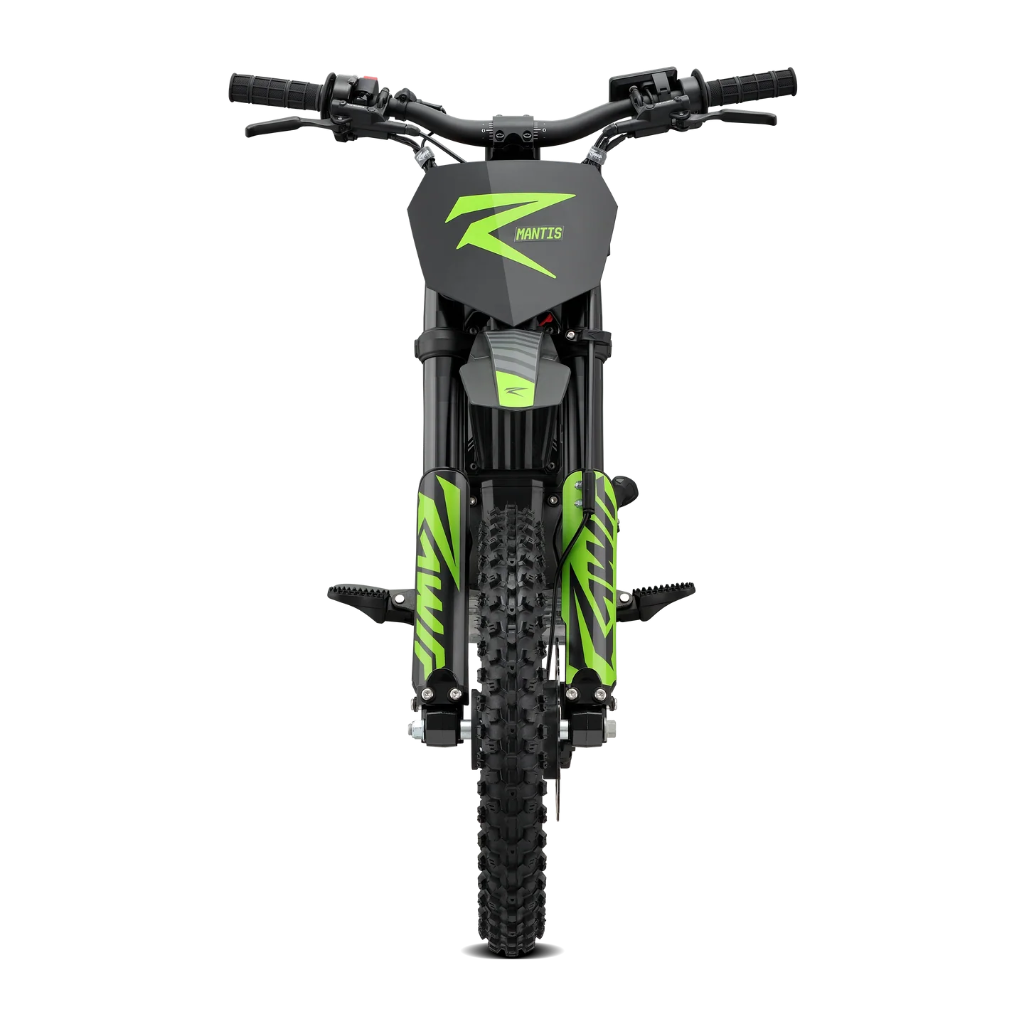

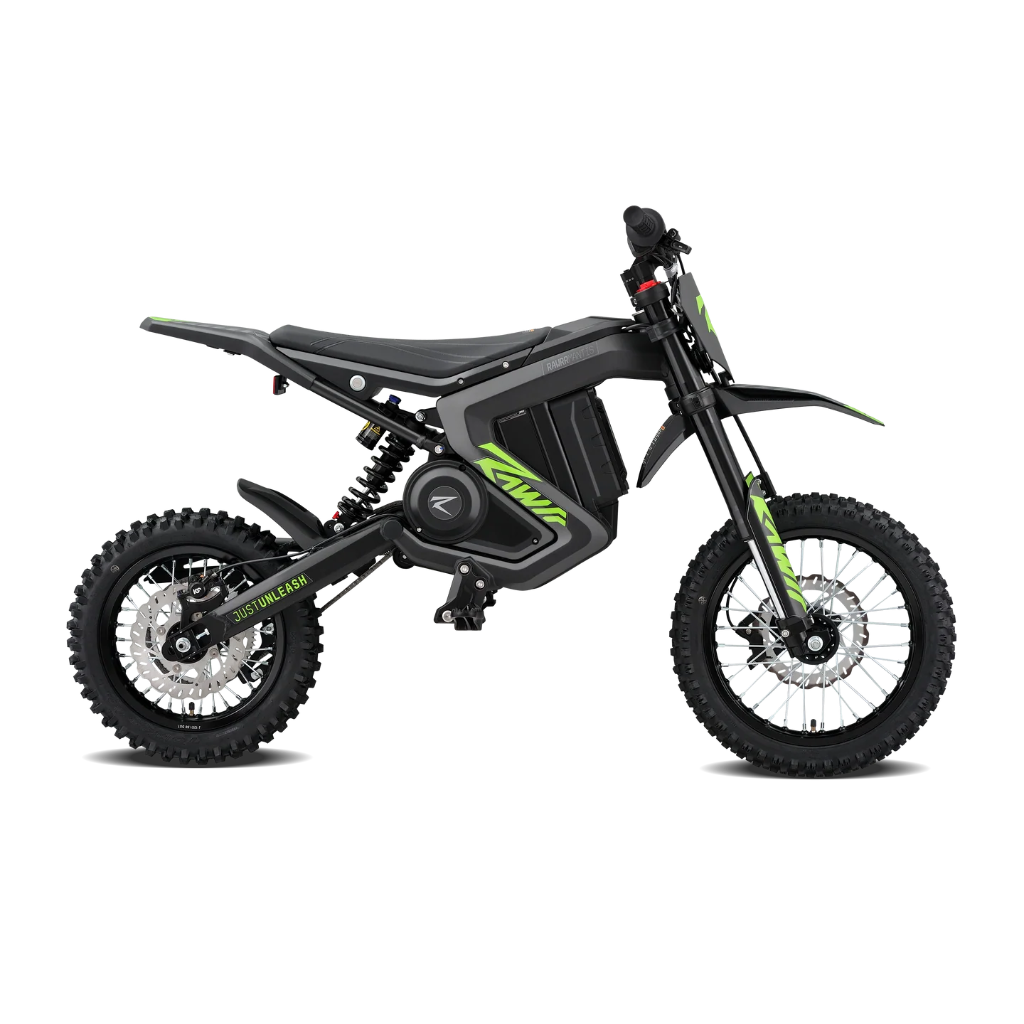

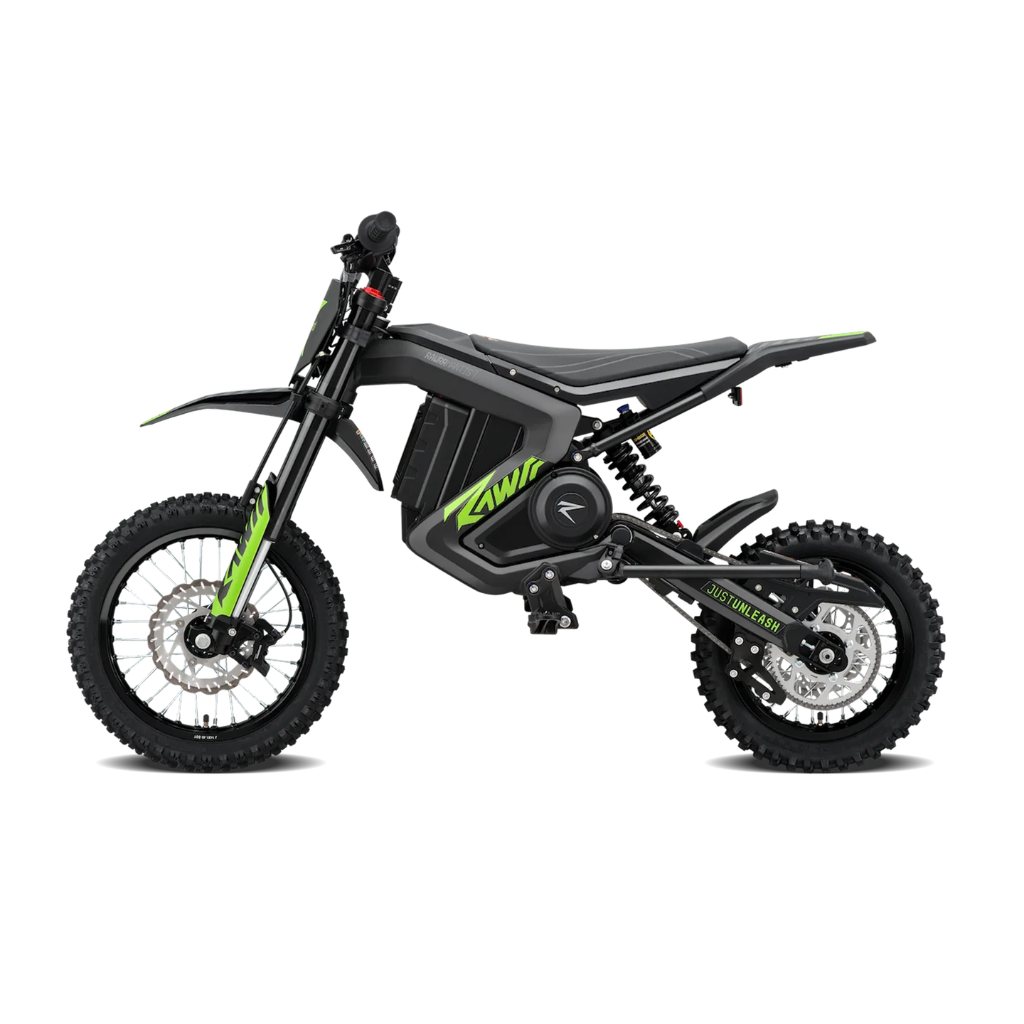

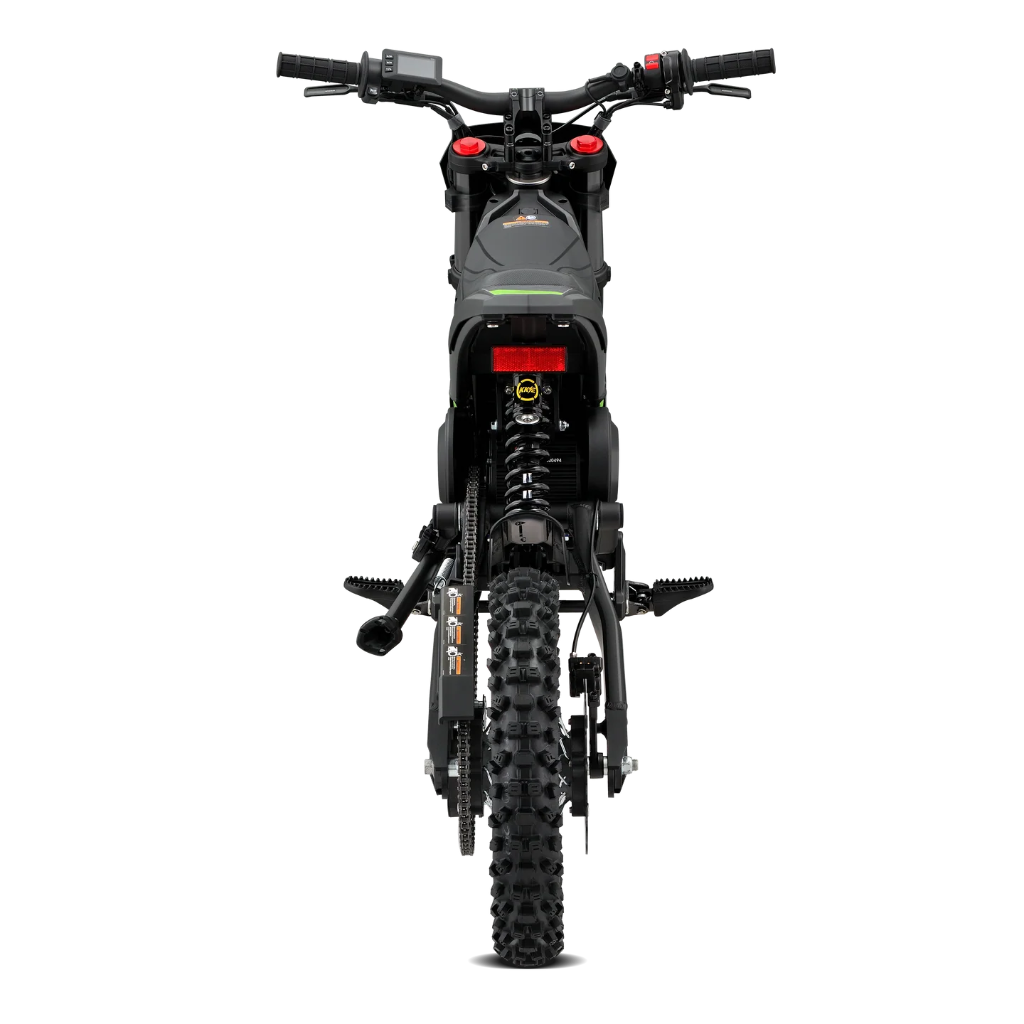

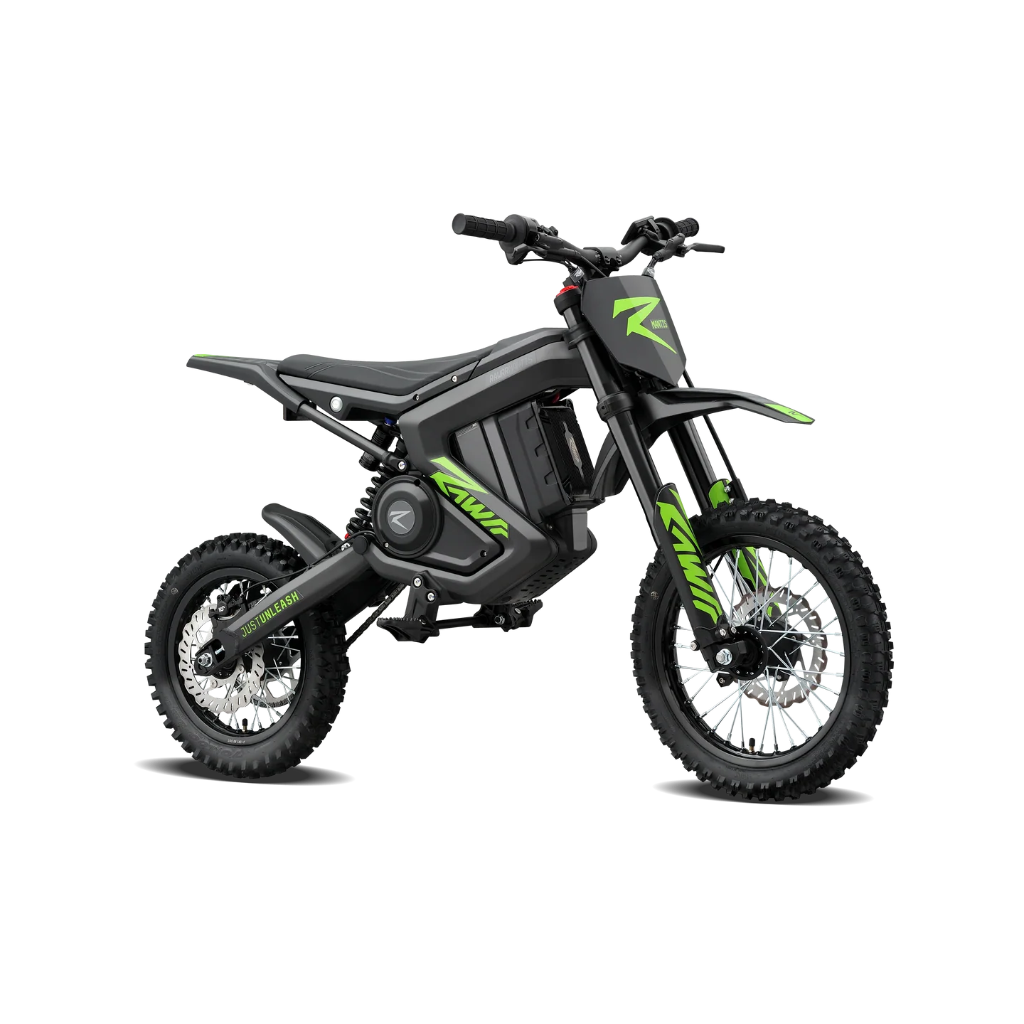

Mantis Mini R
Grows with you.
✓ CLASS 3 E-BIKE · 750W · 28 MPH
1 / 8
TOP SPEED
28 MPH
0-30 MPH
3.6 Seconds
PEAK MOTOR POWER
750W / 500W
BATTERY
72V 1440Wh Li-Ion
RANGE
37 Miles
MAX TORQUE
162.3 ft-lb
WEIGHT CAPACITY
165 lbs
FRAME
6061 Aluminum Alloy
FRONT WHEEL
14 in
REAR WHEEL
12 in
FRONT FORK TRAVEL
110mm
REAR SUSPENSION TRAVEL
60mm
BRAKES
2-Piston Hydraulic Disc (203mm F+R)
DRIVE
Direct Chain Drive
DRIVE MODES
Eco, Sport, Race
DISPLAY
LCD
CHARGING TIME
2 Hours (20%–90%)
VEHICLE WEIGHT
115.7 lbs
NOMINAL POWER
750W / 500W
ASSEMBLY
Assembled & Tested in USA
