BONNELL
775 MX
Legal Speed — Amethyst / Size L
✓ CLASS 3 E-BIKE · 750W · 28 MPH
1 / 12

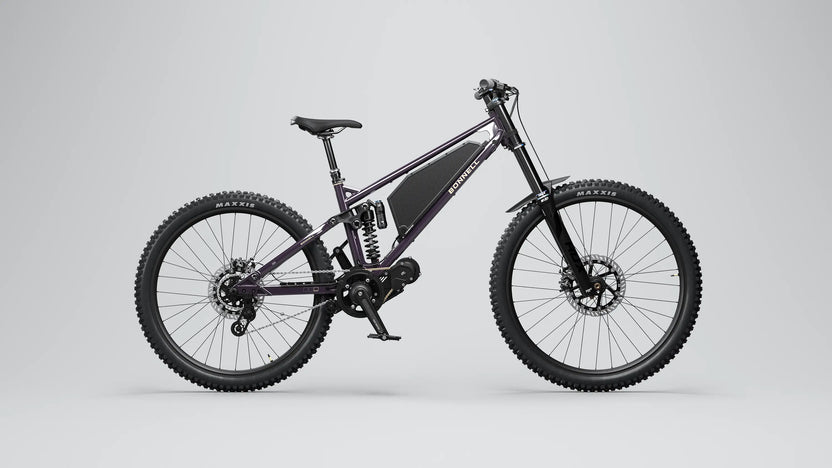

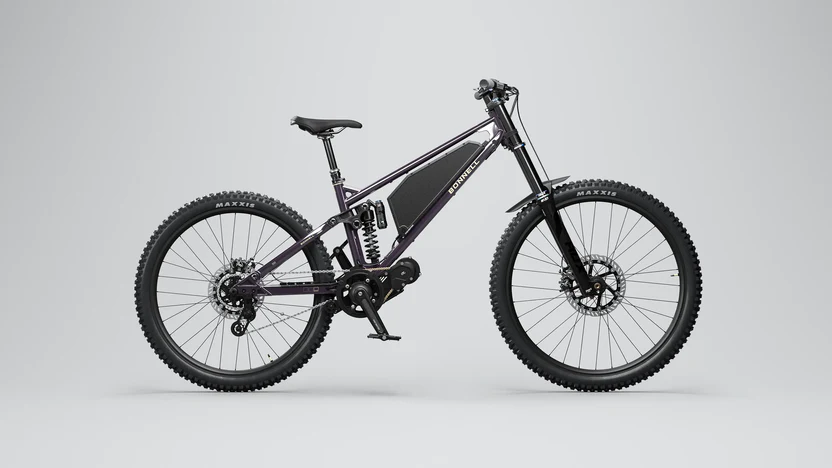

The Bonnell 775 MX is a premium off-road e-bike that fuses downhill mountain bike precision with electric dirt bike power. Featuring the CYC X1 Pro mid-drive motor capped at 750W for street-legal compliance, 280 Nm of torque, and a 1300Wh A65 battery, it delivers 12–37 miles of trail-crushing range. Built in Size L for riders 5'8"–6'2", finished in Amethyst dark purple. The 4130 chromoly frame, Suntour Rux 38 RC+ fork (200mm), Suntour Voro Coil rear shock (170mm), and Magura MT5 4-piston brakes make this a true off-road weapon — shipped in legal street mode.
CLASS
Class 3 E-Bike — 750W (Legal Limit)
COLOR
Amethyst (Dark Purple)
SIZE
Large — Fits 5'8"–6'2"

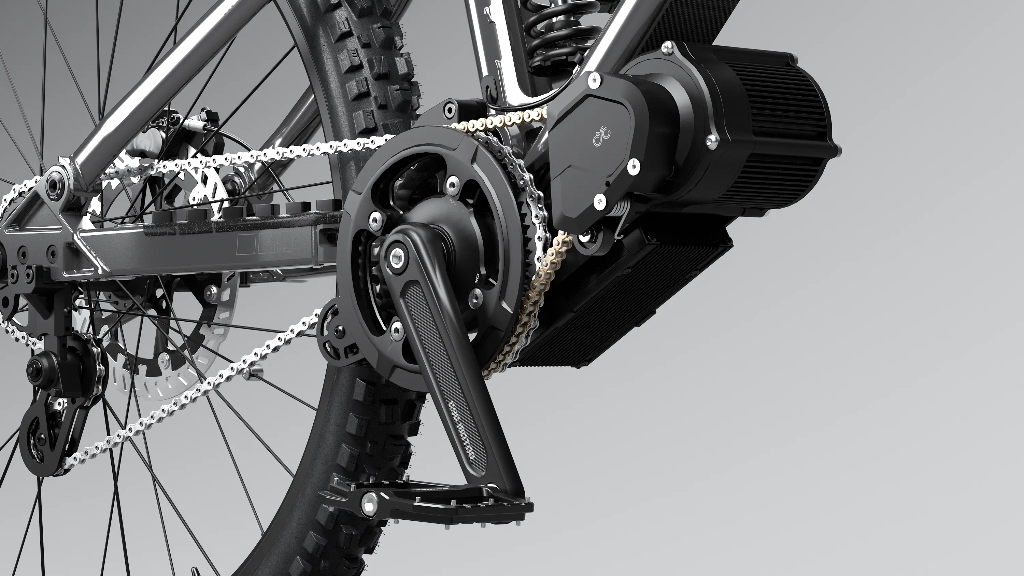

MOTOR
750W (Legal Limit) — CYC X1 Pro
TORQUE
280 Nm
TOP SPEED
28 MPH
BATTERY
CYC A65 Series — 1300Wh
RANGE
12–37 miles
WEIGHT
75 lbs (34 kg)
FRONT SUSPENSION
Suntour Rux 38 RC+ — 200mm travel, 29" wheel

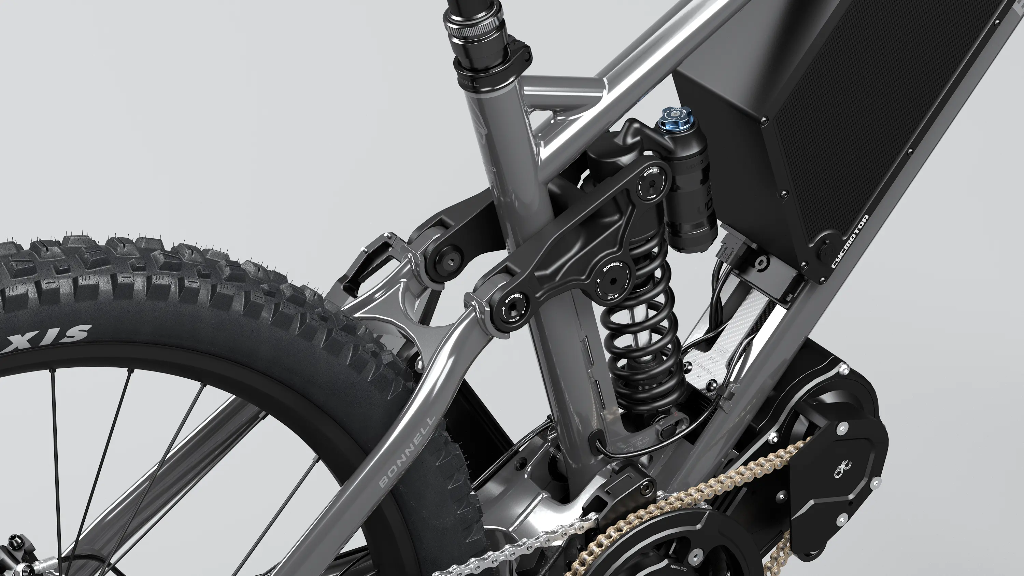

REAR SUSPENSION
Suntour Voro Coil (Trunnion) — 170mm travel
FRAME
4130 Chromoly front triangle + 6061 aluminum chainstays, ED-coated
BRAKES
Magura MT5 4-piston — 220mm front / 203mm rear floating rotors

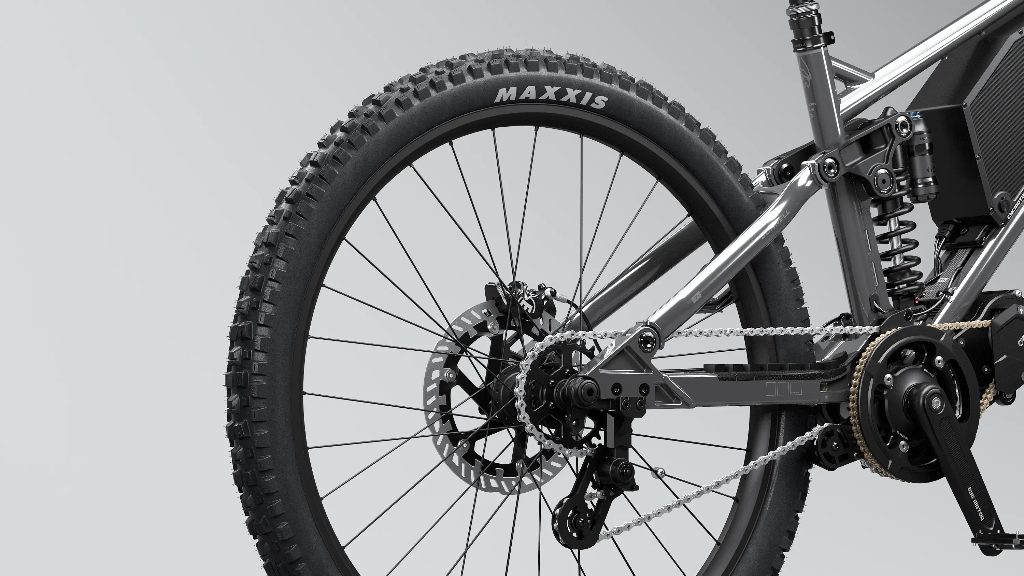

TIRES
Maxxis Assegai DH 2.5" — 29" front / 27.5" rear (mullet)
WHEELS
Alexrims EMC 30, 30mm internal, tubeless-ready, 36H
THROTTLE
Lekkie Pacemaker full-twist throttle

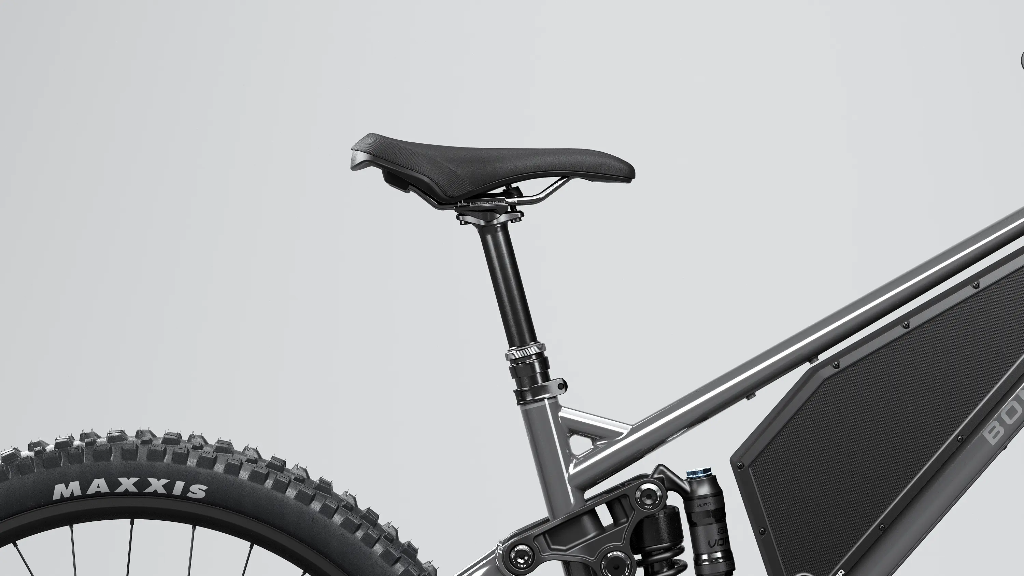

SEATPOST
Tranz-X 30.9mm dropper, 170–200mm travel (L/XL)

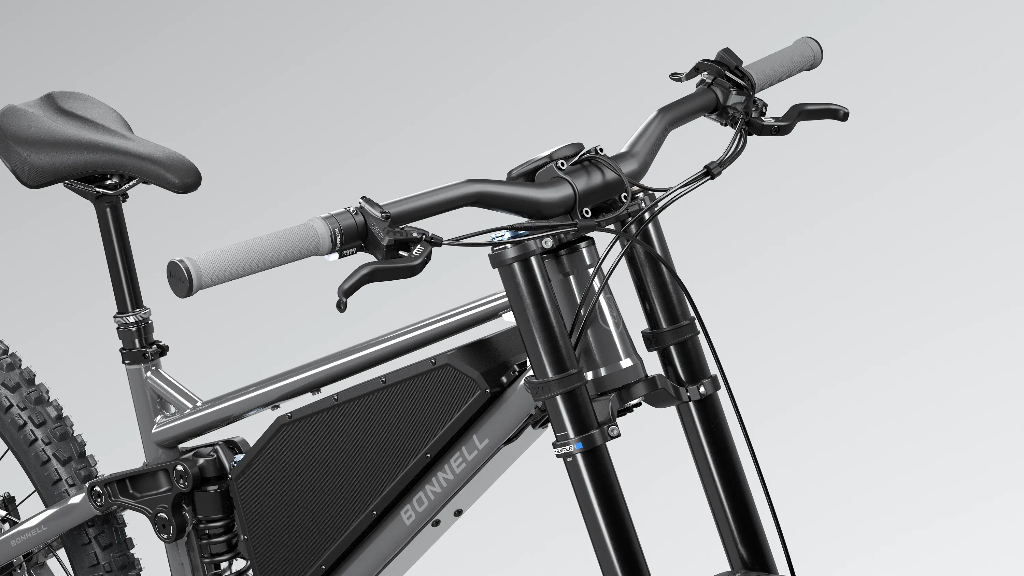

DISPLAY
CYC Intuition integrated smart display
CHAINSTAY
Adjustable: 440mm or 452mm
WARRANTY
Standard Manufacturer Warranty — see ridebonnell.com
